Microprocessor relay protection and automatics devices ImPR1

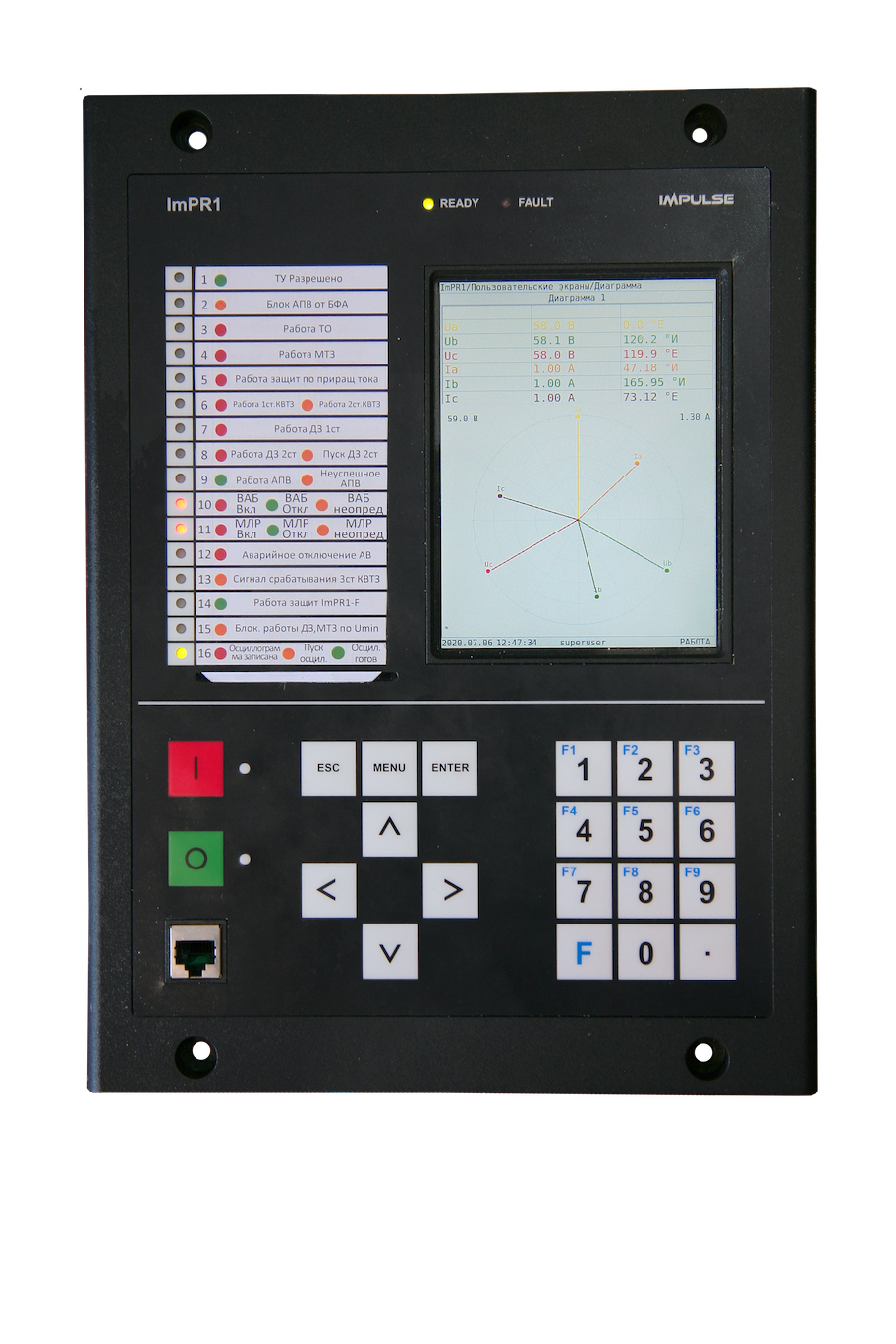

Microprocessor ImPR1 devices are designated for relay protection, automation, and control of systems generating, transmitting, and distributing electric power.
ImPR1 is notable for wide nomenclature and quantity of analog and discrete inputs, output relays, digital communication channels.

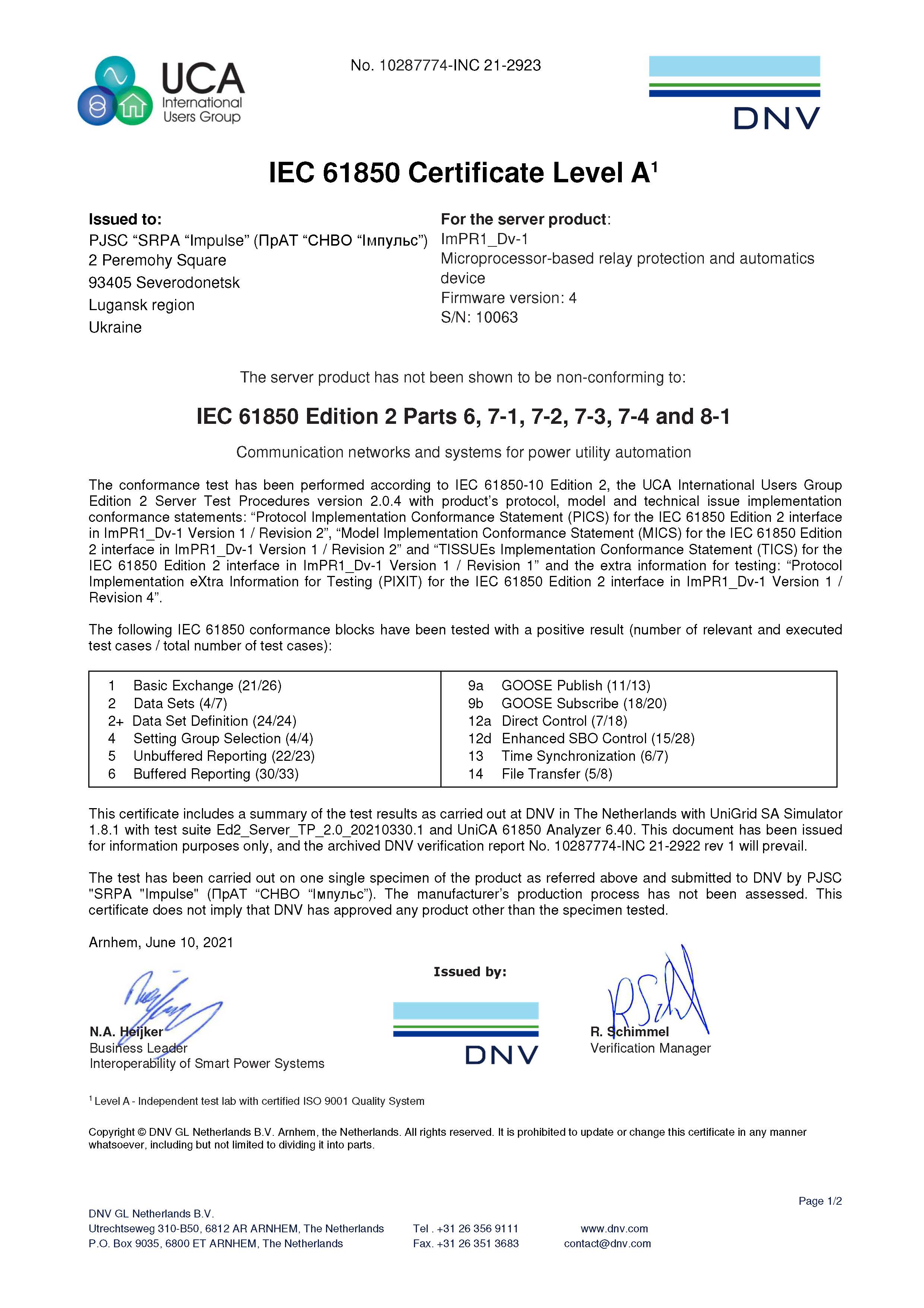

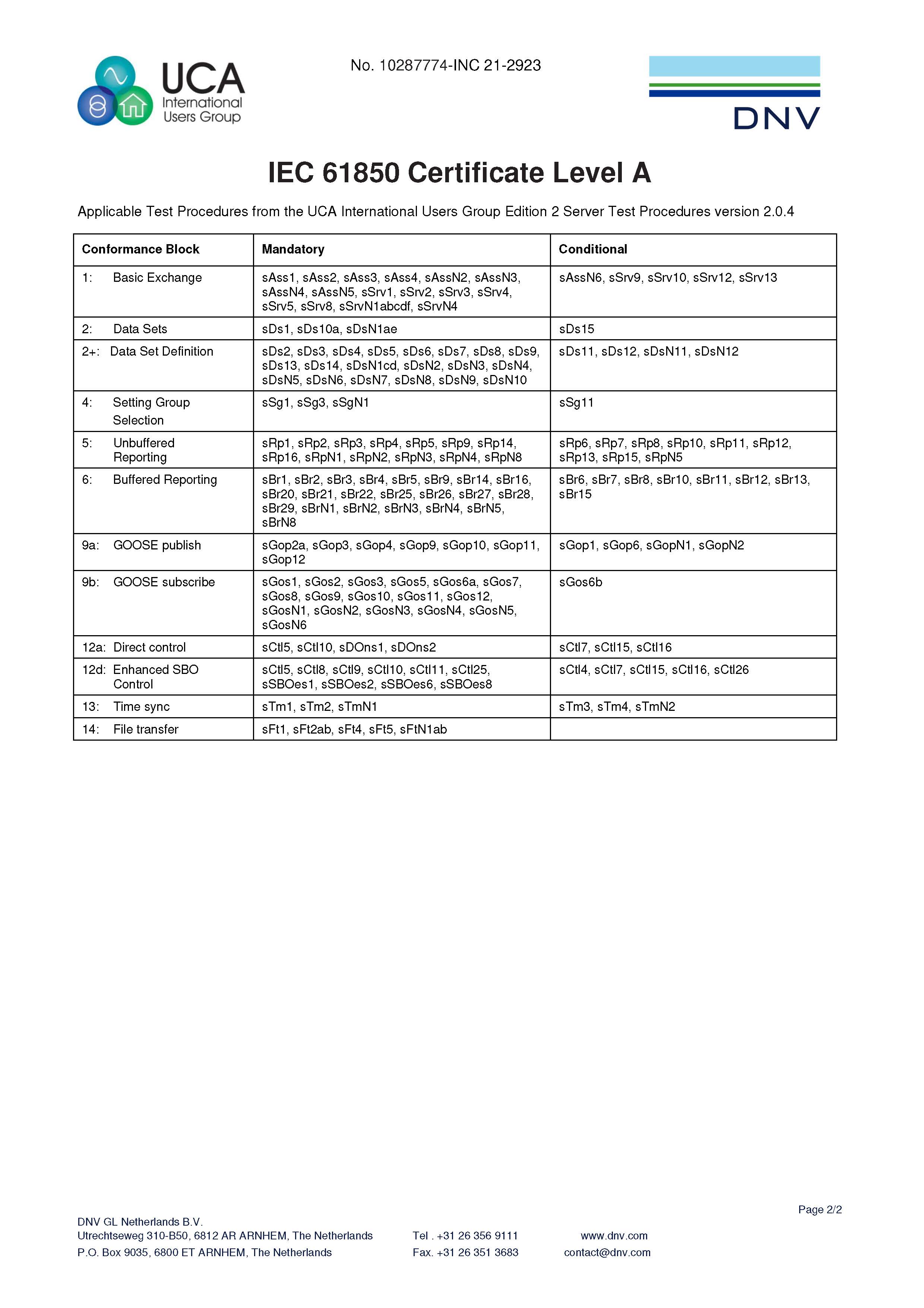

ImPR1 meets the requirements of the IEC 61850 standard.
Main functions:
- current protection;
- voltage protection;
- ground fault protection;
- protection against arc fault with ImPR1_ECHubU-1 switching unit;
- automatic reclosing, frequency unloading, synchronization;
- differential phase protection;
- differential protection;
- remote protection;
- high-voltage circuit breaker health monitoring and service life calculation;
- event logging in normal and emergency modes;

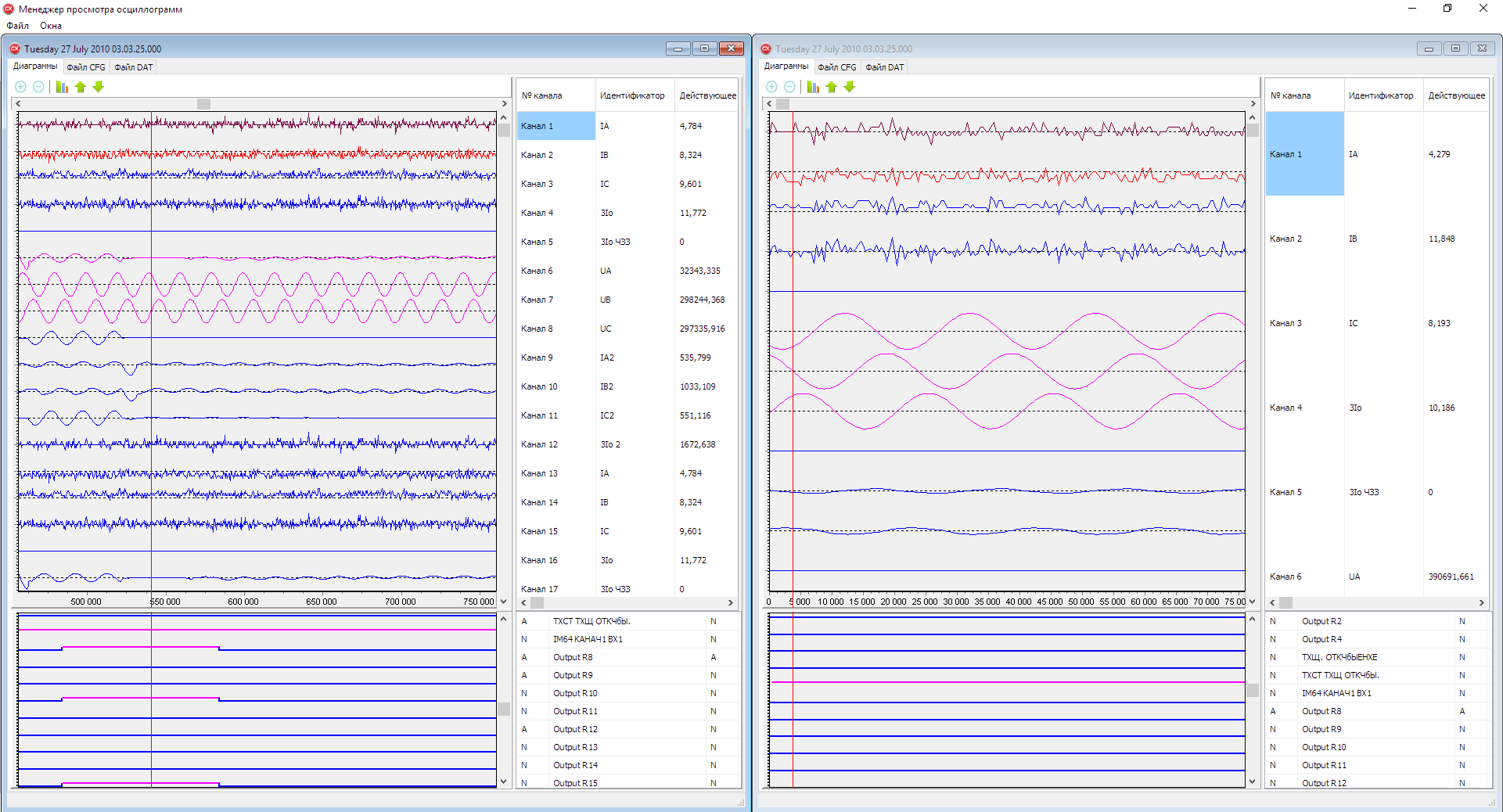

- oscillography of emergency processes.
Advantages:
Hardware based on a single platform;
Performance of functions of relay protection and connection control by a single device;
Can be used at substations with direct and alternating operating current
Differential-phase HF protection and differential protections via IEEE C37.9 optical interface;
Freely programmable discrete inputs, output relays, functional three-colour indicators, functional screens and keys, built-in display;

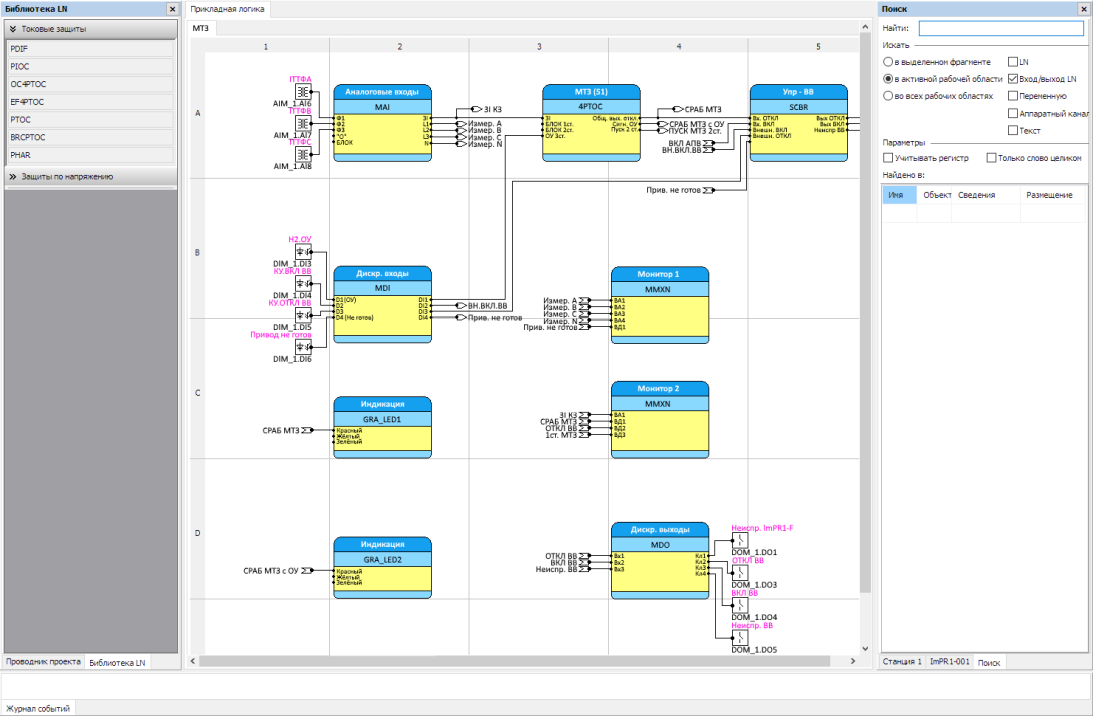

Freely configurable device operating algorithms
Convenient, colour graphic liquid-crystal display;
Convenient interface for the field engineer’s workplace (for operation);
Extended temperature range
(UA) Інші рішення для систем електропостачання
Automatics devices for digital substations
The devices ensure automation of digital substations meeting the requirements of the international standard IEC 61850: automation of electric power transmission and distribution, operation of relay protection and automatics systems, recording of emergency events.
Arc protection devices
ImPR1_ESHubU-1 switching unit with ImPR1_ESensU-1 optical sensors is designated to detect a short circuit arc in distribution devices in a short period of time and to transmit information on a monitored section into relay protection and automatics devices.
Current and voltage sensor
The PSensU-1 current and voltage sensor is designated to measure and monitor current up to 6 kA and voltage up to 6.5 kV and to transmit data via fiber-optical channels into a protection device.
Low-voltage switchgears NKU RTZO-I
Low-voltage switchgears are three-phase alternating current distributors of closed version, one-way service are designated to distribute electric power to low-power users.
Input panel ShchV-1
The panel is designated to input, protect against impulse lightning overvoltages, and record electric power consumption of three feeders of three-phase voltage depending on the package.
Distribution cabinet ShR-1
The cabinet is designated for connection of 21 users (with rated power 880 V·A each) to a power network by means of automatic switches from two independent feeders.
